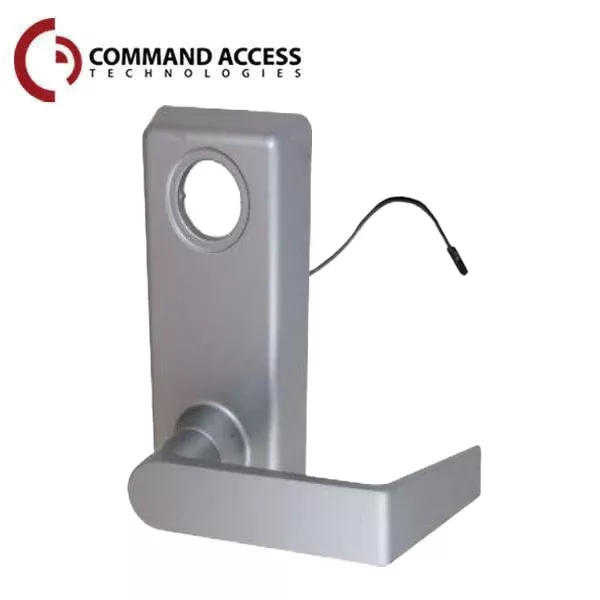

Command Access – V23EU – Electronic Exit Trim – Fail Secure – Storeroom – 24V – 06 Lever – Satin Chrome

The Command Access Technologies V23EU-06-626 is an electrified exit trim designed for use with Von Duprin 22 exit devices. It is part of a line of electrified door hardware that allows the outside lever to be electronically unlocked, providing control over door access. The Outside lever unlocked (EU) electronically. Switched power allows the outside lever to retract the latch(es). The outside key momentarily unlocks the outside lever to retract the latch(es). Inside pushpad is always free for immediate egress. Features:Fail-Secure Operation ensures that it stays locked during power loss for enhanced security.The free egress from the inside allows the inside lever to always exit in emergencies.The 24V DC Operation is compatible with most access control power systemsThe remote access control allows remote locking and unlocking through connected systems.Retrofit design easily retrofits onto VonDuprin 22 series exit devices without major modifications.Field Configurable supports fail-secure configuration based on installation requirements.Specifications:ManufacturerCommand Access Technologies Voltage24V DCCurrent Draw350-450 mAPower TypeContinuous DutyFunctionStoreroomFinish626 Satin ChromeMaterial Corrosion-resistant metal, suitable for high-traffic environments CompatibilityCompatible with all standard Von-Duprin 22 series exit devicesOperating Temperature Range-20°F to 120°F (-29°C to 49°C) HumidityDesigned for indoor and limited outdoor use, depending on environmental exposureCertifications/ComplianceUL Listed for fire-rated doorsMeets ANSI/BHMA standards for grade 1 hardware, ensuring the highest level of performance for commercial applicationsRemote AccessCan be integrated into access control systems for centralized management and monitoring Warranty3- year Manufacturer’s warranty Downloads:CutsheetInstallation Instructions
