[ Introduction ]

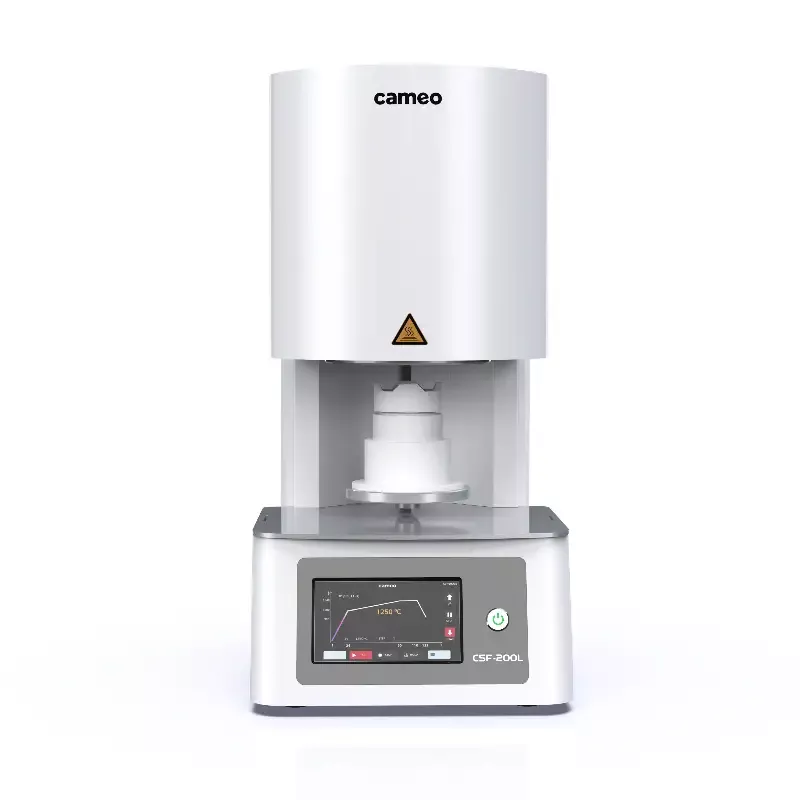

CSF-200 is a special furnace for rapid sintering of zirconia materials. As a new generation product of cameo zirconia rapid sintering furnace, it perfectly matches Aidite zirconia materials. At the same time, the design of opening the furnace at 900°cto cool down and adding intelligent management modus has greatly improved the processing efficiency of dentures. Two sizes, different application scenarios The design of two sizes and the medical white appearance also make it suitable for different scenes in labs and clinics.
Demand
[ CSF-200 Highlights ]
The furnace can be opened at 900°C
Breakpoint continue
Silicon carbide rod life reminder
One-key start
[ Parameter ]
|
Model |
CSF-200S |
CSF-200L |
|---|---|---|
|
Size (L*W*H) |
330*470*700mm |
370*510*780mm |
|
Furnace size |
70×80mm |
100×120mm |
|
Net weight |
37.5kg |
50kg |
|
Power supply |
220V/50Hz |
220V/50Hz |
|
Rated power |
1.5kw |
2.5kw |
|
Heating element |
3 silicon carbide rods |
4 silicon carbide rods |
|
Sintering options |
Fast sintering/Slow sintering |
Fast sintering/Slow sintering |
|
Fastest sintering time |
2.5h |
3h |
|
Number of sintered dentures (Max) |
30 |
70 |
|
Sintering curve |
20 |
20 |
[ High Purity Silicon Carbide elements ]
|
|
Color |
L |
C |
h |
|---|---|---|---|---|
|
Ten times sintering |
A3 |
0.7 |
0.7 |
0.6 |
|
Two hundred times sintering |
A3 |
0.7 |
0.6 |
0.6 |
Note
L value stands for brightness
c value stands for saturation
h value stands for tone
